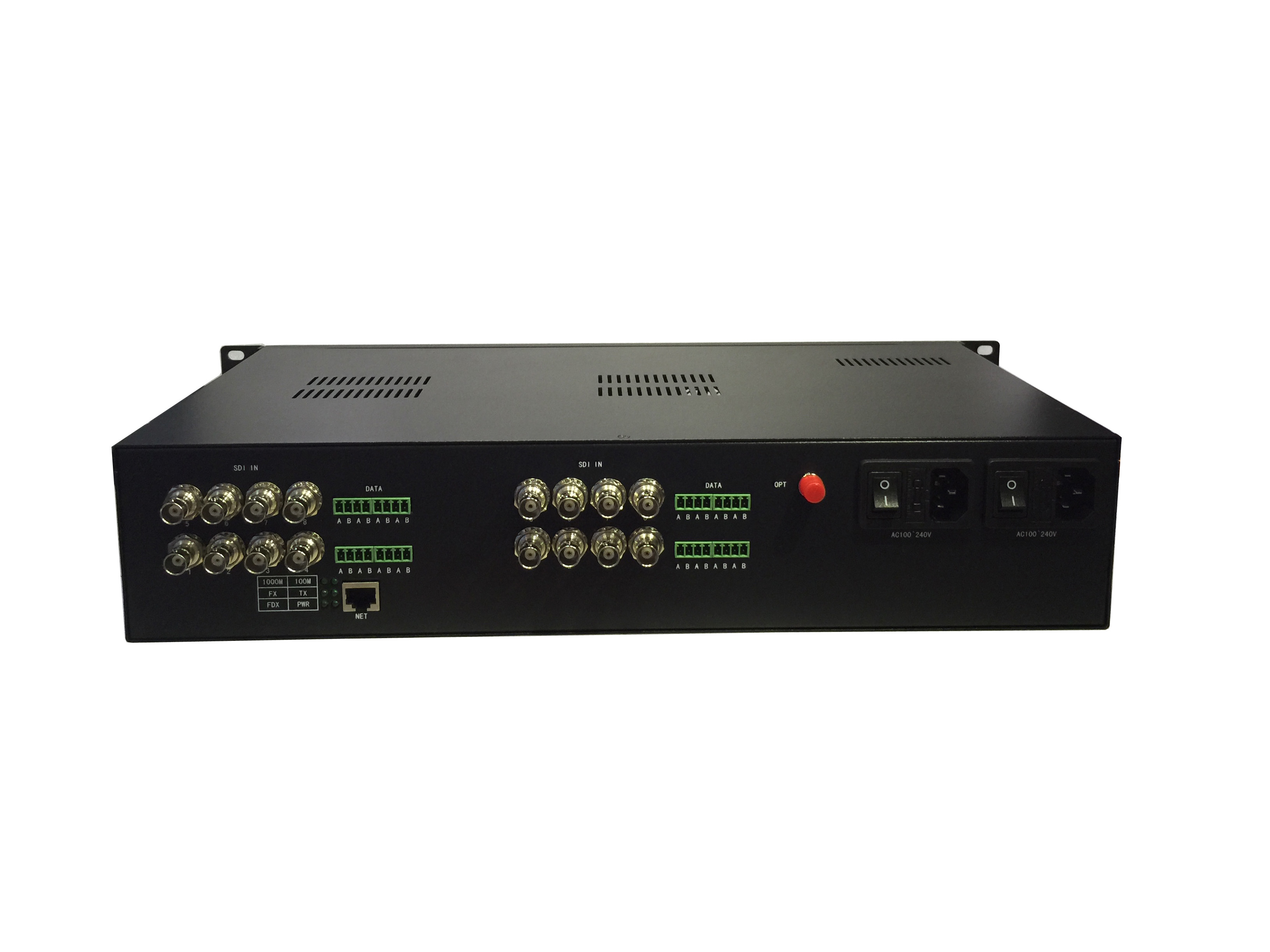

16-CH 3G-SDI fiber optic transmitter and receiver with Ethernet

12G-SDI fiber optic transmitter and receiver, 3G-SDI fiber converter, 1-16 channels CWDM uncompressed SDI fiber optic extender, HD-SDI to fiber extender, SDI optical transceiver. SDI extender over fiber . we welcome any AV transmission OEM device

1. Overview

This 16-channel 3G-SDI fiber optic transmitter and receiver extends 16 channels of 3G-SDI, HD-SDI, SD-SDI signals, 1-ch 1000M Ethernet over single core fiber optic cable.
Our multiple SDI extender over fiber optic cable is all produced by TDM, DWDM, CWDM uncomressed solution so that we could do multiple SDI signal with
data, external audio, Ethernet and other functions over single core fiber cable.Our SDI extenders could meet all broadcast TV transmission quality level. We welcome any OEM service.

2. Features

16-channel unidirectional 3G-SDI , 1-ch 1000M Ethernet over single core fiber
Compatible with HD-SDI, SD-SDI, ASI, TS Stream
Range from 19.4Mb/s to 2.97Gb/s
SMPTE 424/425M (2.97Gb/s) clock recovery
Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
100m automatic cable equalization, all the 2.97Gb / s rate below(Belden 1694A)
Optional network management system
LED status indicators monitor the critical parameters
Support hot swap
1U rack mount

3. Specifications

a) Serial TV, BNC input

Signal standard: SMPTE 424/425M, 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and Telecom/Datacom rate(19.4Mb/s - 2.97Gb/s)
Input number: 16
Reflection loss: >15DB
Equilibrium: 0-100m @2.97Gb/s
Connector: 75Ω BNC

b) Optics

Channel: 1
Type: single-mode (multimode optional)
Wavelength: 1310nm /1550nm
Reflection loss: > 15dB
Dithering: < 0.2UI
Connector: FC/PC ,ST/PC

c) Serial TV, BNC output (EO/OE)

Channel: 16
Signal level: 800mV nominal
Rise/fall time: 200ps indication
Overshoot: < 10% amplitude
Reflection loss: >15dB
Dithering: < 0.2UI
Connector: 75Ω BNC

d) Data Optional

Channel: 1-4
Data format: RS-485 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal

e) Power and environmental indication

Operating temperature: 0°C~+50°C
Pressure: 90VAC to 245VAC
Power: 12 W
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard
Average time trouble-free: >100000 hours

f) Other
Dimension: 1U standard rack
Weight: 2Kg

4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links

5. Ordering information

3G/HD-SDI Fiber Optic Transmitter/Receiver
HC4016P-T
16-ch 3G-SDI/HD -SDI input, 1-ch 1000M Ethernet, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, 1U rack mount
HC4016P-R

16-ch 3G-SDI/HD -SDI output,1-ch 1000M Ethernet, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km,1U rack mount

- 3G-SDI fiber optic transmitter
